Bosch replacement motor for Type 5 drill

Skip image gallery

€243.95*

incl. 19% VAT plus shipping

Private customer Business customer

Available, delivery time: 2-5 days

Product number: 44759-5

Product information "Bosch replacement motor for Type 5 drill"

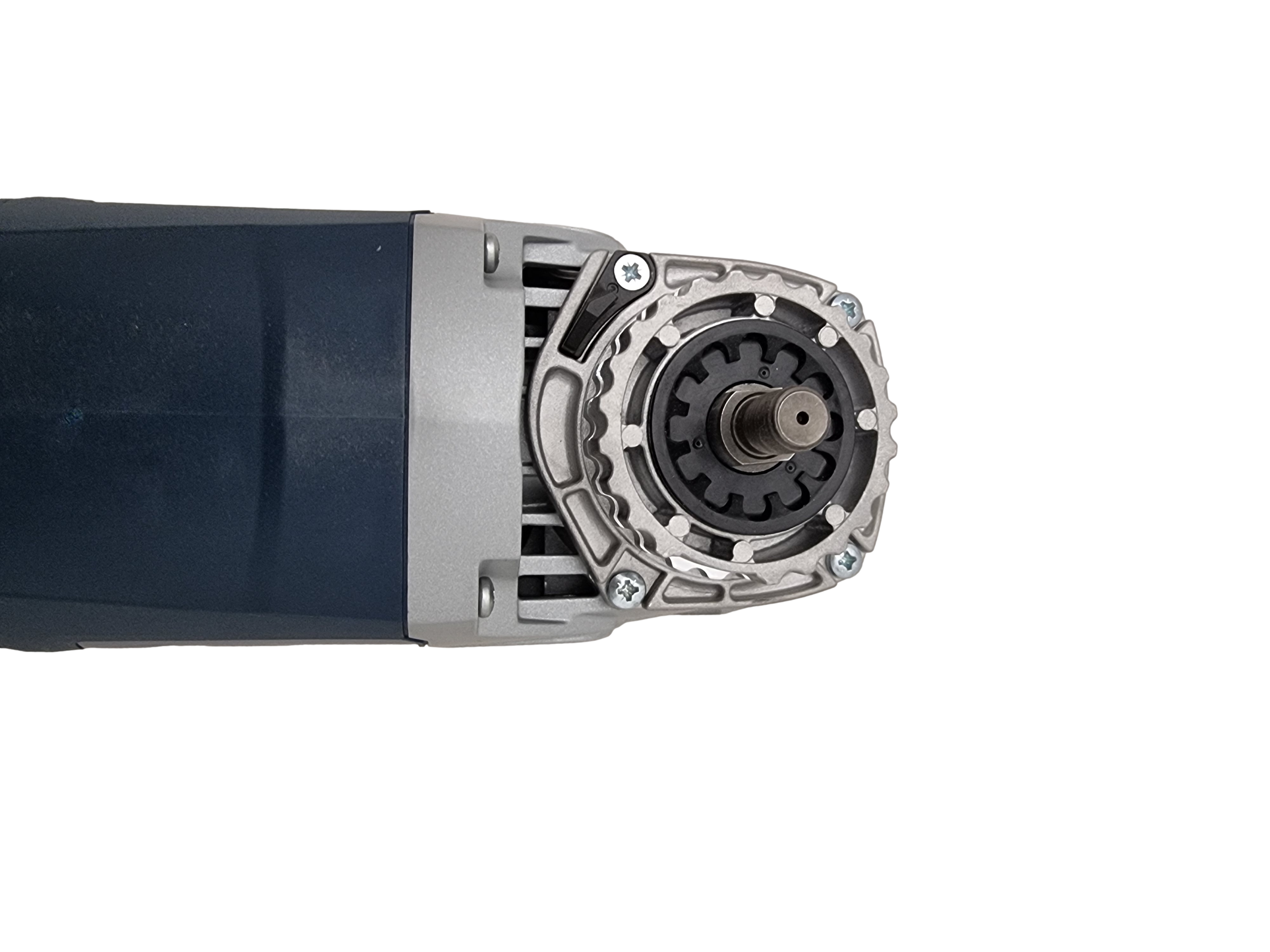

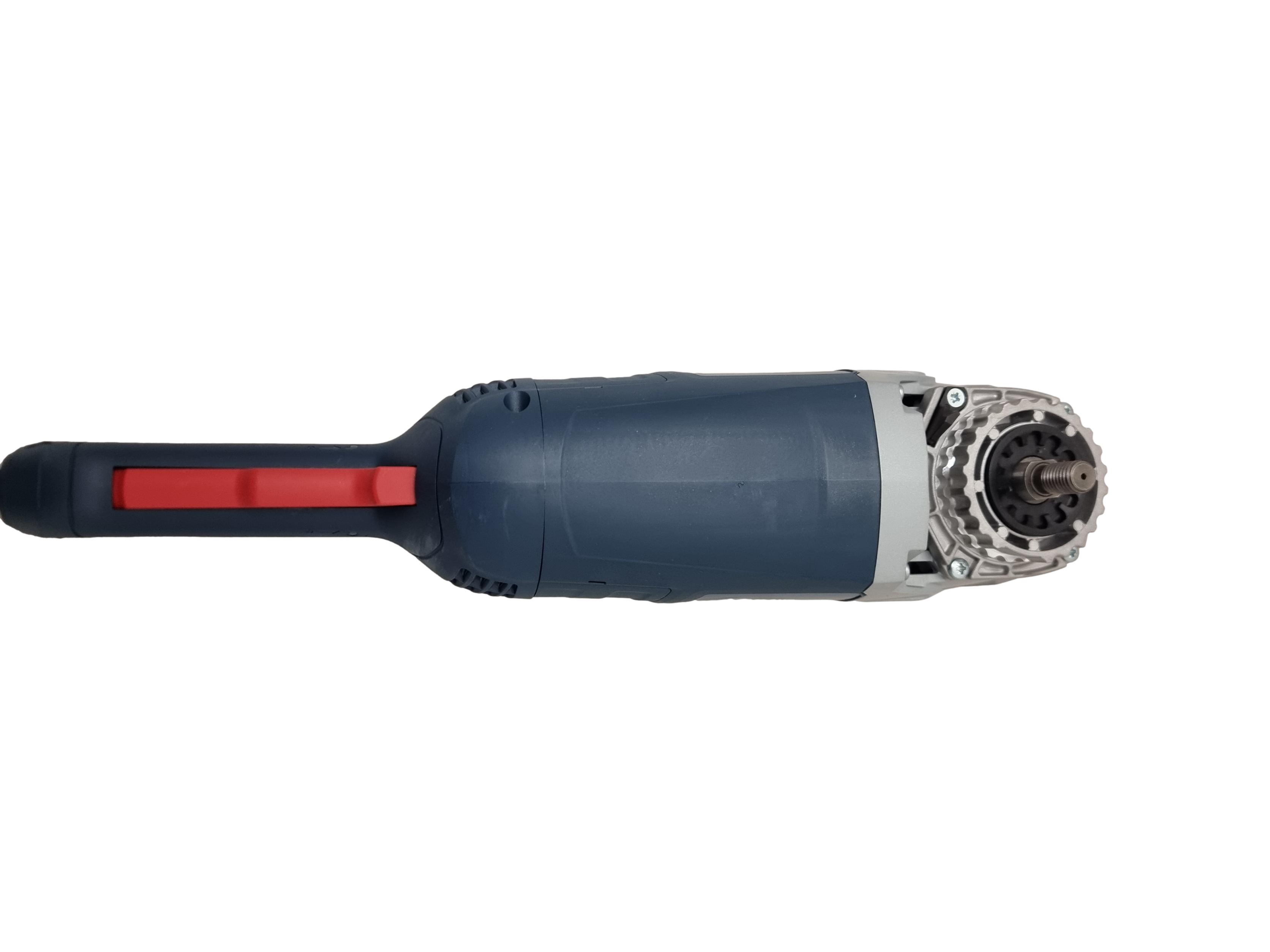

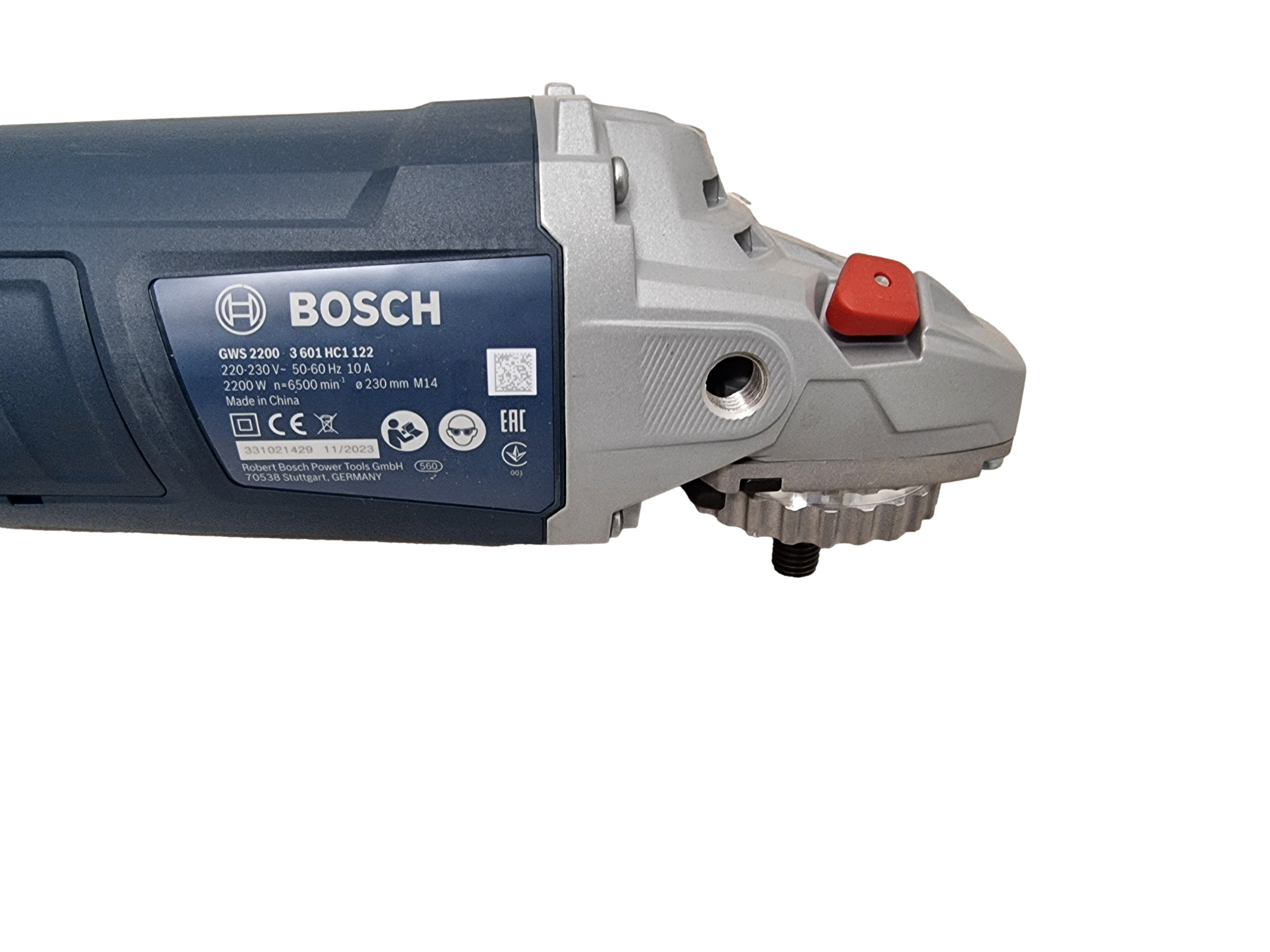

Bosch GWS 2200 angle grinder (220V/6,500rpm) suitable for the Easyfix Type 5 drilling machine. The angle grinder is supplied ready for direct installation.

IMPORTANT: Electrical work must only be carried out by qualified electricians or under their supervision. Always disconnect the machine from the mains before carrying out any work!

0 of 0 reviews

Leave a review!

Share your experiences with other customers.

Tannen-Paradies GmbH
Röblingstraße 150
12105 Berlin
Deutschland
Skip product gallery

Similar products

Power lead with plug, 5 m
Power lead with plug, 5 m
5 m power lead including Schuko plug (protection class IP44), suitable for Easyfix drills types 1/2/3/4/5 and for the tree-shaking machine (item no. 44800). IMPORTANT: Electrical work must only be carried out by qualified electricians or under their supervision. Always disconnect the machine from the mains before carrying out any work!

€23.80*
Distance bar for drilling machine
Distance bar for drilling machine
Spare part suitable for the Easyfix drilling machine, types 1/2/3/4/5.A straight and fully functional distance bar is essential for precise drilling. If it is bent, it should always be replaced to ensure the tree can be correctly aligned during drilling. If the rod no longer locks properly, preventing it from being adjusted to the relevant tree size on the stainless steel rod, we also recommend replacing it.

€47.60*
Plastic plain bearings
Plastic plain bearings
Maintenance-free dry plain bearings made of plastic (internal diameter: 18 mm). Suitable for Easyfix drilling machine, types 2/3/4/5.The bearings are fitted in pairs on both sides of the carriage to which the angle grinder is mounted. Here, they ensure that the component glides smoothly along the two chrome rods, thereby enabling the machine to be operated effortlessly via the foot pedal.Important: This is a dry plain bearing. It is not necessary to grease the bearings!To replace the bearings, release the chrome rods from their mountings in the machine and pull both rods out. Using circlip pliers for bores (internal rings, i.e. the pliers close when squeezed), remove the upper and lower circlips securing the bearing in order to replace it. Then reinsert the circlips, reinsert the chrome rods and secure them.

€3.57*
Stainless steel rod, 200 cm
Stainless steel rod, 200 cm
Stainless steel rod 35 x 35 x 2000 mm. When used in conjunction with the Easyfix drill, this allows trees to be aligned and drilled up to a height of 2.5 metres. Made from stainless steel for maximum stability and durability. Compatible with the Easyfix drilling machines type 1/2/3/4/5.

€95.20*
Stainless steel rod, 273 cm
Stainless steel rod, 273 cm
Stainless steel rod 35 x 35 x 2730 mm. When used in conjunction with the Easyfix drill, this allows trees to be aligned and drilled up to a height of 3.5 metres. Made from stainless steel for maximum stability and durability. Compatible with the Easyfix drilling machines type 1/2/3/4/5.

€95.20*
Funnel with 37 mm opening
Funnel with 37 mm opening
Standard funnel with 37 mm opening. Suitable for Easyfix drilling machines type 2/3/4/5.

€41.65*
HSS drillbit 16 mm (for Easyfix drill)
HSS drillbit 16 mm (for Easyfix drill)
Special tapered drillbit with a diameter of 16 mm, made from high-alloy tool steel. Suitable for Easyfix drills types 1/2/3/4/5. Designed for drilling holes in Christmas trees for display and setting up using the Easyfix system.Lifespan: approx. 3,000 drill holes. The drill tip can be re-sharpened afterwards.Required shank: 16 mm

€44.15*
2x hexagon set screws for drill chuck
2x hexagon set screws for drill chuck
Spare set screws (1 pair) for securely fixing the drill bit in the drill chuck. Suitable for Easyfix drills, types 1–5. Technical data: M8 external thread, 4 mm internal hexagon.To change the drill bit, slightly loosen the side grub screws. Then pull the drill bit out upwards and insert the sharpened or new drill bit so that the flattened side faces towards the grub screws. Then tighten both screws hand-tight again.

€7.14*
Electrical unit for drilling machine
Electrical unit for drilling machine
Electrical unit including on/off switch and emergency stop. Compatible with all Easyfix drilling machines, types 2/3/4/5.IMPORTANT: Electrical work must only be carried out by qualified electricians or under their supervision. Always disconnect the machine from the mains before carrying out any work!

€101.15*
