Easyfix Drilling machine Spare Part Switch

HSS drillbit 16 mm (for Easyfix drill)

Special tapered drillbit with a diameter of 16 mm, made from high-alloy tool steel. Suitable for Easyfix drills types 1/2/3/4/5. Designed for drilling holes in Christmas trees for display and setting up using the Easyfix system.Lifespan: approx. 3,000 drill holes. The drill tip can be re-sharpened afterwards.Required shank: 16 mm

€44.15*

Distance bar for drilling machine

Spare part suitable for the Easyfix drilling machine, types 1/2/3/4/5.A straight and fully functional distance bar is essential for precise drilling. If it is bent, it should always be replaced to ensure the tree can be correctly aligned during drilling. If the rod no longer locks properly, preventing it from being adjusted to the relevant tree size on the stainless steel rod, we also recommend replacing it.

€47.60*

Stainless steel rod, 200 cm

Stainless steel rod 35 x 35 x 2000 mm. When used in conjunction with the Easyfix drill, this allows trees to be aligned and drilled up to a height of 2.5 metres. Made from stainless steel for maximum stability and durability. Compatible with the Easyfix drilling machines type 1/2/3/4/5.

€95.20*

Stainless steel rod, 273 cm

Stainless steel rod 35 x 35 x 2730 mm. When used in conjunction with the Easyfix drill, this allows trees to be aligned and drilled up to a height of 3.5 metres. Made from stainless steel for maximum stability and durability. Compatible with the Easyfix drilling machines type 1/2/3/4/5.

€95.20*

Drilling machine type 5

The Easyfix drilling machine enables precise drilling into grafted and ungrafted trees up to a height of 2.5 m. The powerful Bosch motor (230 V / 2.1 kW, 6,500 rpm) ensures rapid drilling in just a few seconds. This means that around 120 trees can be drilled per hour.To do this, pull the net on the trunk slightly upwards (for trees with netting), place the tree in the conical feed funnel and align the tip with the height-adjustable spacer rod (yellow). Pressing the foot pedal whilst the machine is running drills a vertical hole into the underside of the tree trunk. In combination with our display stands and water stands, this drilling process enables an attractive product display and helps build strong customer loyalty.New features compared to Type 4: More ergonomic handling thanks to a lower overall heightImproved rolling performance thanks to larger tyresReduced weightEasier operation thanks to high-quality ball bearingsScope of delivery: Drilling machine with 5 m power cable2 m stainless steel rodSpacer rod1 pre-assembled drill bit and 1 spare drill bit1 pair of spare grub screws for securing the drill bit in the chuckInstructions & videos for the Easyfix drilling machine

€1,749.30*

%

Drilling machine type 5

The Easyfix drilling machine enables precise drilling into grafted and ungrafted trees up to a height of 2.5 m. The powerful Bosch motor (230 V / 2.1 kW, 6,500 rpm) ensures rapid drilling in just a few seconds. This means that around 120 trees can be drilled per hour.To do this, pull the net on the trunk slightly upwards (for trees with netting), place the tree in the conical feed funnel and align the tip with the height-adjustable spacer rod (yellow). Pressing the foot pedal whilst the machine is running drills a vertical hole into the underside of the tree trunk. In combination with our display stands and water stands, this drilling process enables an attractive product display and helps build strong customer loyalty.New features compared to Type 4: More ergonomic handling thanks to a lower overall heightImproved rolling performance thanks to larger tyresReduced weightEasier operation thanks to high-quality ball bearingsScope of delivery: Drilling machine with 5 m power cable2 m stainless steel rodSpacer rod1 pre-assembled drill bit and 1 spare drill bit1 pair of spare grub screws for securing the drill bit in the chuckInstructions & videos for the Easyfix drilling machine

€1,511.30* €1,749.30* (13.61% saved)

CLEARANCE STOCK Drilling machine type 1

The Easyfix drilling machine enables precise drilling of both netted and unnetted trees up to a height of 2.5 m. A robust AC motor (230 V / 2.1 kW, 2800 rpm) ensures a, quiet drilling process that takes just a few seconds.To do this, pull the net on the trunk slightly upwards (for trees with netting), place the tree in the conical feed funnel and align the tip with the height-adjustable spacer rod (yellow). Pressing the foot pedal whilst the machine is running drills a vertical hole into the underside of the tree trunk. In combination with our display stands and water stands, this drilling process enables an attractive product display and helps build strong customer loyalty.Scope of delivery: Drilling machine with 5 m power cable2 m stainless steel rodSpacer rod1 pre-assembled drill bit and 1 spare drill bitInstructions & videos for the Easyfix drilling machine

€1,178.10*

Tip

RENTAL: Drilling machine type 5

Try out the Easyfix drilling machine and see for yourself!Take advantage of our convenient rental scheme: you pay a rental fee plus a one-off delivery charge, and can use the machine extensively in your business for one sales season.You then have until 15 February of the following year to choose one of the three options below: Purchase the Easyfix drill: You take ownership of the machine at the purchase price minus the rental fee. Extend the rental: Rent the drill for another season (Please note: Subsequent rental fees will not be deducted from the purchase price!). Return: Simply send the machine back to us – you’ll be responsible for the return postage (Important: In this case, please contact us in advance so that we can arrange the return with you). You can find all the information regarding the hire of the Easyfix drill in our hire terms and conditions:Download PDF

€297.50*

Power lead with plug, 5 m

5 m power lead including Schuko plug (protection class IP44), suitable for Easyfix drills types 1/2/3/4/5 and for the tree-shaking machine (item no. 44800). IMPORTANT: Electrical work must only be carried out by qualified electricians or under their supervision. Always disconnect the machine from the mains before carrying out any work!

€23.80*

2x hexagon set screws for drill chuck

Spare set screws (1 pair) for securely fixing the drill bit in the drill chuck. Suitable for Easyfix drills, types 1–5. Technical data: M8 external thread, 4 mm internal hexagon.To change the drill bit, slightly loosen the side grub screws. Then pull the drill bit out upwards and insert the sharpened or new drill bit so that the flattened side faces towards the grub screws. Then tighten both screws hand-tight again.

€7.14*

Plastic plain bearings

Maintenance-free dry plain bearings made of plastic (internal diameter: 18 mm). Suitable for Easyfix drilling machine, types 2/3/4/5.The bearings are fitted in pairs on both sides of the carriage to which the angle grinder is mounted. Here, they ensure that the component glides smoothly along the two chrome rods, thereby enabling the machine to be operated effortlessly via the foot pedal.Important: This is a dry plain bearing. It is not necessary to grease the bearings!To replace the bearings, release the chrome rods from their mountings in the machine and pull both rods out. Using circlip pliers for bores (internal rings, i.e. the pliers close when squeezed), remove the upper and lower circlips securing the bearing in order to replace it. Then reinsert the circlips, reinsert the chrome rods and secure them.

€3.57*

Funnel with 37 mm opening

Standard funnel with 37 mm opening. Suitable for Easyfix drilling machines type 2/3/4/5.

€41.65*

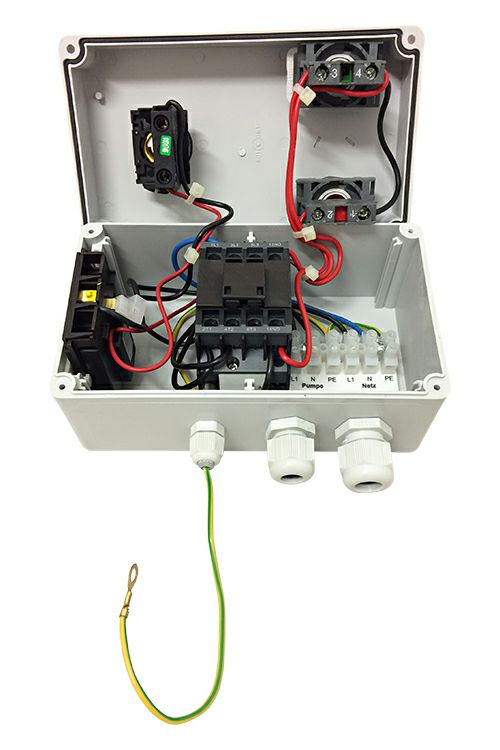

Electrical unit for drilling machine

Product information "Electrical unit for drilling machine"

Electrical unit for drilling machine

Product information "Electrical unit for drilling machine"
